Product: Screw press screen
Material: SS304, SS316L
OD: 50mm min
ID: 175mm, 200mm, 230mm, 280mm or customized
Length: 600mm or customized
Slot Direction: Radial Direction, Axial Direction
Slot Range: 20 micron min

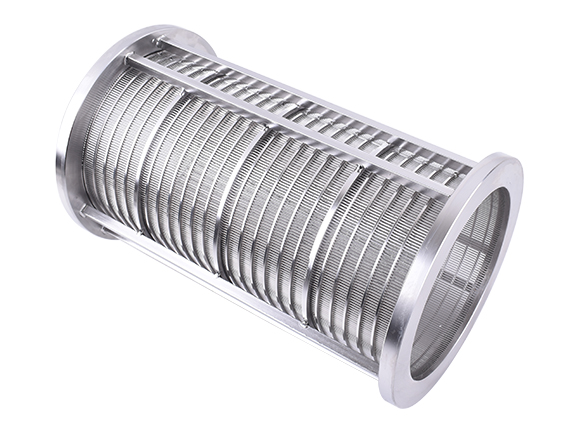

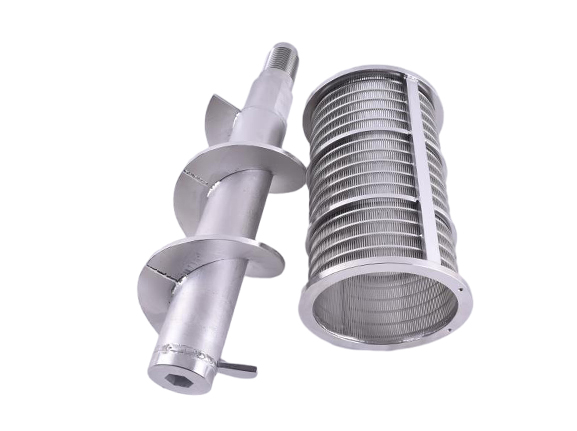

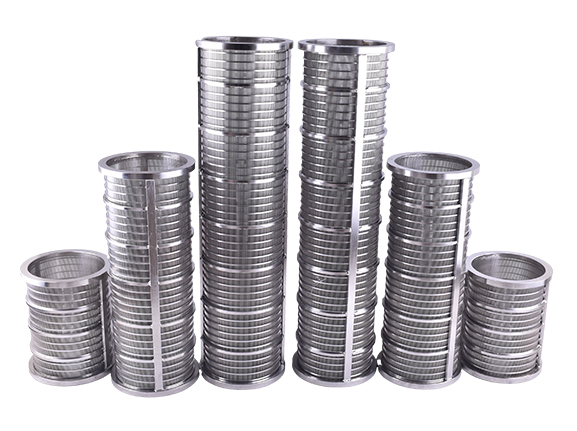

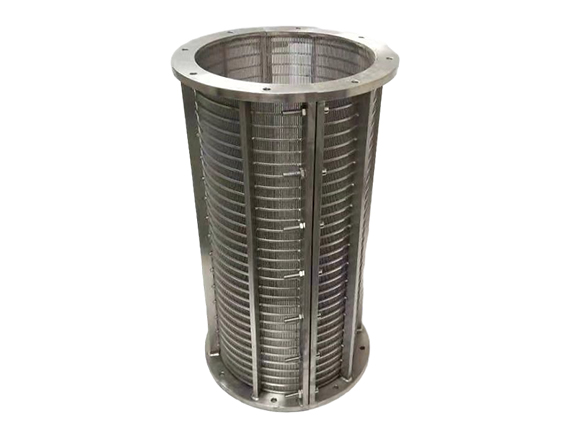

What is Screw Press Screen?
Screw press screen is a kind of wedge wire series dewatering screen mainly used in screw press.
There are two types of screens, perforated metal and wedge wire screen.
Wedge wire screen type products have obvious advantages in structure, opening rate, etc., and are not easy to block, which is the best choice.
ZHEHAN provides customized services. The products include various brands of replacement products and other customized products of any style. Some brand replacement:
◆EYE
◆ FAN
◆ GEA
◆ KEYDOLLAR
◆ BAUER
◆ CRI-MAN
◆ WAM
Please contact us for other types of products.
Specifications of Screw Press Screen
l Material: Stainless steel 304 & 316.
l Slot size: 0.3mm, 0.5mm, 0.8mm, 1.0mm.
l Diameter: 180mm, 200mm, 230mm, 260mm, 600mm...
l Types: BLu-180, BLu-230, BLu-280...
The above specifications are conventional specifications, ZHEHAN can customize products of various sizes.
Features of Our Screw Press
l Strong structure
We use advanced ring fusion welding technology, the wedge wire and the support rod are firmly welded together. The ribs prevent it from breaking and deforming.
l Special surface treatment process
We use a special physical surface treatment process to extend the life of the screw press screen.
l Cleaning
The BLu-CL model is our new product. A vibrating machine is added to the original design to make it easier to clean the screw press screen.
Application of Screw Press Screen
Widely used in industrial dewatering.
l Livestock&poultry farms - Solid Liquid manure separator
Manure dewatering can not only monetize useless farm manure, but also solve environmental problems caused by long-term accumulation of manure.
The most commonly used manure separator is the BLu-180 type screw press screen, due to the differences in the treatment of manure, the structure and gaps of the screw press dewatering screen need to be changed.
Application: Chicken manure dewatering, cow manure dewatering, pig manure dewatering.
l Food waste dehydration
l Sludge dewatering
l Waste distiller's grains dewatering
Distiller's grains can be processed into feed after dehydration and reused as waste. The most economical dehydration method is to use a screw press.
l Fresh hemp dewatering
Screw press have been used in the hemp industry, and screen with smaller gaps are required to process hemp, but the gap size is more than 3mm, too small will cause blockage.
Feel free to contact us, if you are interested in our products.
